Dust free blasting

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

H₂O KIT FOR WET BLASTING

H₂O Kit for dustfree blasting with the IBIX^® 9, IBIX^® 25 and IBIX^® 40.

Makes an IBIX^® 9F2 / IBIX^® 25P an IBIX^® H₂O version. Delivered with detailed instructions for assembly.

REQUEST A QUOTATION

STEEL WATER SPRAYING SYSTEM

For mobile wet blasting without water connection.

For mobile wet blasting without water connection. Can be delivered in 25, 50 and 100 liters. To be used in combination with an H₂0 system.

REQUEST A QUOTATION

SUCTION BRUSH

For dust free blasting in combination with a vacuum cleaner.

For dust-free blasting in combination with a vacuum cleaner. The suction brush is connected on the nozzle of the gun.

REQUEST A QUOTATION

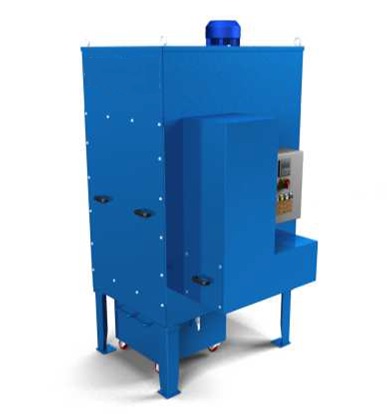

EXTRACTION SYSTEM

Extraction system for dust-free blasting in cabins.

An industrial dedusting filter with fully automatic cleaning of the cartridges by means of compressed air pulses. The filter housing is made of 3 mm. sheet steel in welded version, finished in RAL 5015.

Capacity filter:

3.600 m³/h (3.800 Pa)
Filter surface:

84 m2 (4 filter cartridges)
Cleaning degree:

99,999% > 5 micron
Required floor space:

1.382 x 1.305 mm. (max. dimensions)
Height:

2.140 mm. (including soundproof box)
Compressed air consumption:

6 Bar dry, clean and oil-free compressed air
Air pulse sound level:

ca. 82 dB(A)
Contents of the dust container:

130 ltrs
Installed fan power:

5,5 kW
Rpm:

2.895 omw./min.

REQUEST A QUOTATION

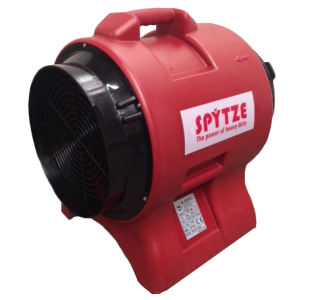

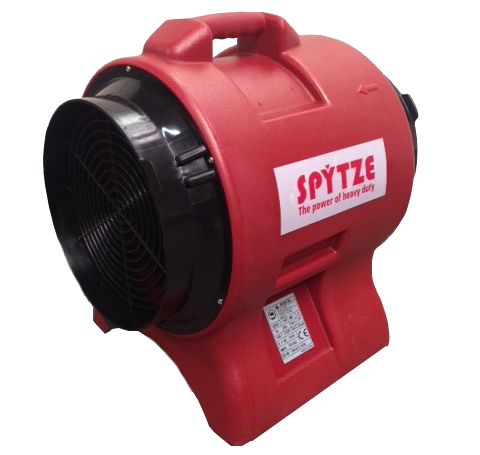

SPYTZE EL3700 FAN

The SPYTZE EL3700 is a powerful and robust fan for dust-free working / blasting and aeration / drying.

Thanks to the sturdy plastic, this fan can take a beating. The fans are stackable and easy to move.

Various accessories are available for the Spytze fans:

Dust collection bag when the dust cannot / should not be moved outside
Suction hose for both the suction and the blowing side in different lengths
Coupling sockets for extending the extraction hose or for combining the extraction hose with the dust collection bag

The Spytze EL3700 is often used for:

Dust extraction when blasting stairs (if the stairs cannot be properly covered, the Spytze V7560 or several V3700 fans are used
Demolition work in bathrooms and other small spaces
Aerating or drying small and medium-sized rooms

Weight:

13 kgs.
Dimensions mm:

520 x 400 x 500
Air displacement l/min:

3700
Diameter mm:

305
Cord length m:

4,5

REQUEST A QUOTATION

SPYTZE EL7560 FAN

The SPYTZE EL7560 is a powerful and robust fan for dust-free working / blasting and aeration / drying.

Thanks to the sturdy plastic, this fan can take a beating. The fans are stackable and easy to move.

Various accessories are available for the Spytze fans:

Dust collection bag when the dust cannot / should not be moved outside
Suction hose for both the suction and the blowing side in different lengths
Coupling sockets for extending the extraction hose or for combining the extraction hose with the dust collection bag

The Spytze EL7560 is often used for:

Powerful dust extraction when blasting stairs
Demolition work in normal and larger areas
Aerating or drying medium and large rooms

Weight:

20 kgs.
Dimensions mm:

580 x 560 x 460
Air displacement l/min:

7560
Diameter mm:

405
Cord length m:

4,5

REQUEST A QUOTATION
